Oracle WebLogic Server 12c: Installing WebLogic Server and Creating a Domain
This tutorial contains the following sections:
  • Purpose
  • Time to Complete
  • Overview
  • Software Requirements
  • Prerequisites
  • Installing WebLogic Server
  • Creating a New WebLogic Server Domain
  • Summary
  • Resources
  • Credits

Purpose
This tutorial shows how to install Oracle WebLogic Server 12c and create a new WebLogic Server domain.

Time to Complete
Approximately 1 hour

Overview
This tutorial covers installing Oracle WebLogic Server 12c (12.1.1) on a Linux system by using the Linux binary installer. After WebLogic Server is installed, the tutorial shows how to use the Configuration Wizard to create a new WebLogic Server domain.

Software Requirements
The following is a list of software requirements:
  • Oracle Linux 5.6+

Prerequisites
Before starting this tutorial, you should have downloaded the Oracle WebLogic Server 12c (12.1.1) binary installer to your Linux machine.

Installing WebLogic Server
To install Oracle WebLogic Server 12c, perform the following steps:

1. In a Terminal window, navigate to the location of the Linux binary installer (in this tutorial the stage directory), and enter the following command to run it:
$ ./oepe-indigo-installer-12.1.1.0.0.201112072225-12.1.1-linux32.bin
$OUGTH: ห้ามติดตั้งด้วย root เช่นเดียวกับ Oracle Database.
$OUGTH: อย่าลืมแก้ permission ให้สามารถ execute file ได้.

Screenshot for Step

$OUGTH: ทดลองใน OL6.5 ถ้าพบ error "/lib/ld-linux.so.2: bad ELF interpreter: No such file or directory" เพราะขาด glibc.i686 แก้โดย
yum -y install glibc.i686

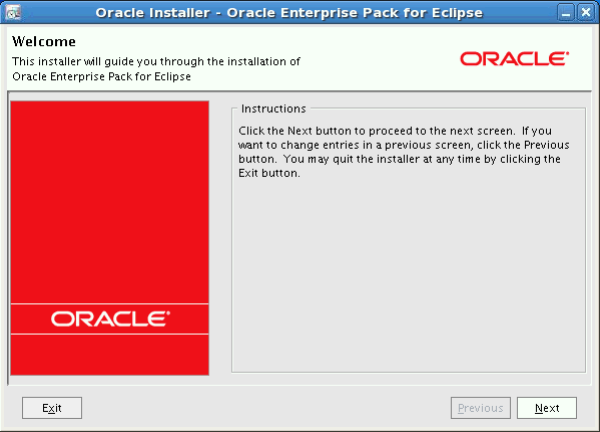

2. On the Welcome screen of the installer, click Next.

Screenshot for Step

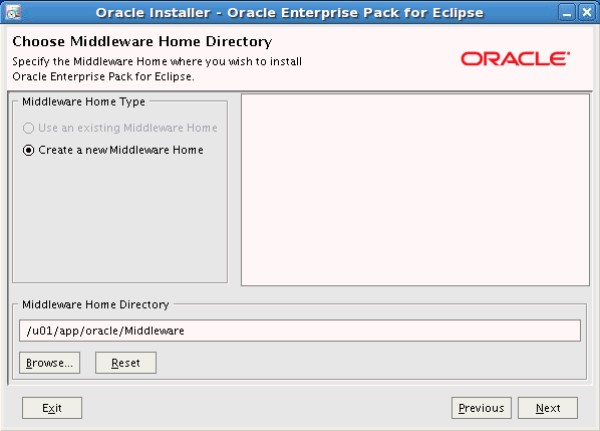

3. On the Chose Middleware Home Directory screen, select Create a new Middleware Home. Then enter the name of the middleware home directory. In this tutorial it is: /u01/app/oracle/Middleware.
Then click Next.

Screenshot for Step
You may decide to chose a different directory for .

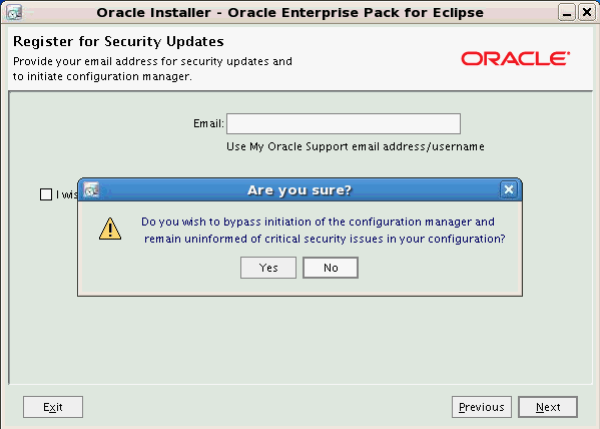

4. On the Register for Security Updates screen, deselect I wish to receive security updates via My Oracle Support. When the dialog box titled "Are you sure?" appears, click Yes.
Then click Next.

Screenshot for Step

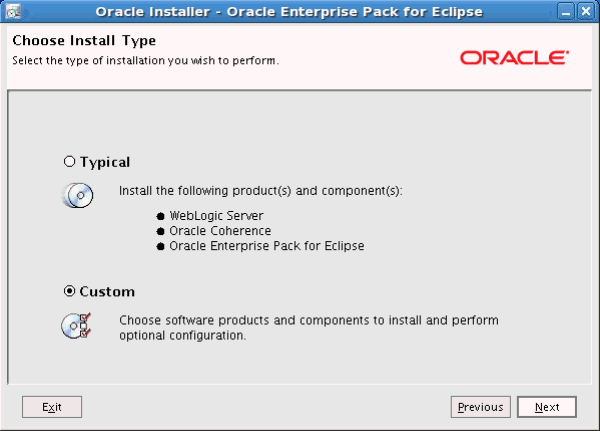

5. On the Choose Install Type screen, select Custom.
Then click Next.

Screenshot for Step

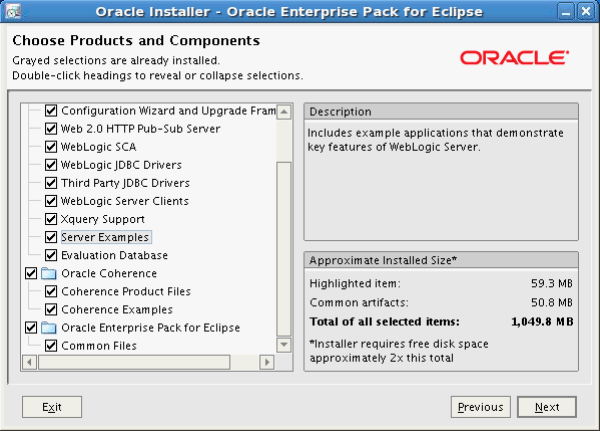

6. On the Choose Products and Components screen, select Server Examples and Coherence Examples so that all possibilities are now selected.
Then click Next.

Screenshot for Step
Note: The installer you are using may not have the same products as those seen in the tutorial. The only required product for these tutorials is WebLogic Server itself, so it won't matter if Oracle Coherence or Oracle Enterprise Pack for Eclipse are not installed.

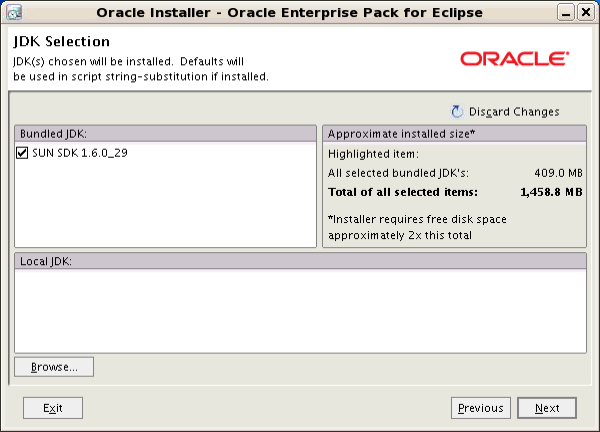

7. On the JDK Selection screen, select the JDKs to install. In this tutorial there is just one, SUN SDK 1.6.0_29. If your installer lists multiple JDKS, select them all.
Then click Next.

Screenshot for Step

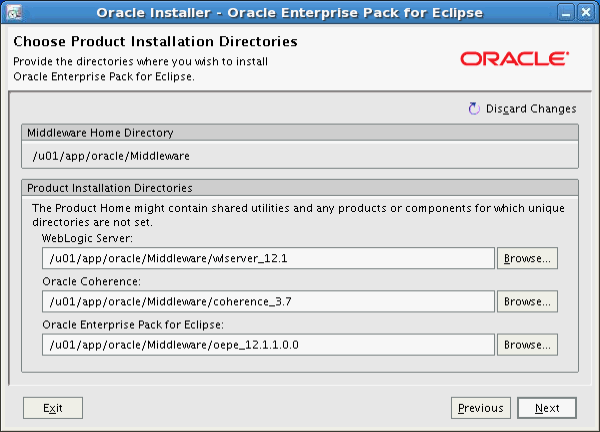

8. On the Choose Product Installation Directories screen, leave all the default installation directories. Make note of where the products are being installed.
Then click Next.

Screenshot for Step
Note: Again, the installer you are using may not have the same products as those seen in the tutorial, so there may be fewer installation directories listed.

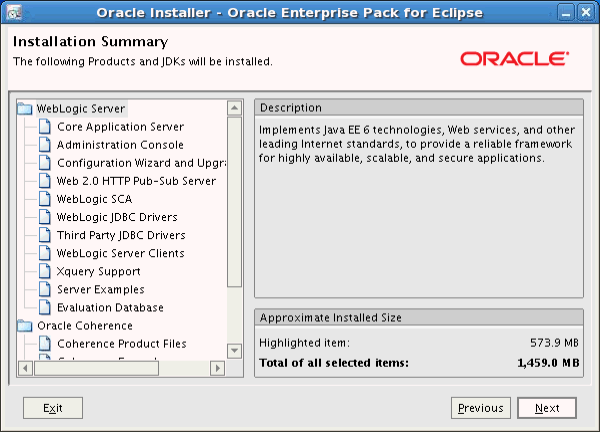

9. On the Installation Summary screen, click Next.

Screenshot for Step

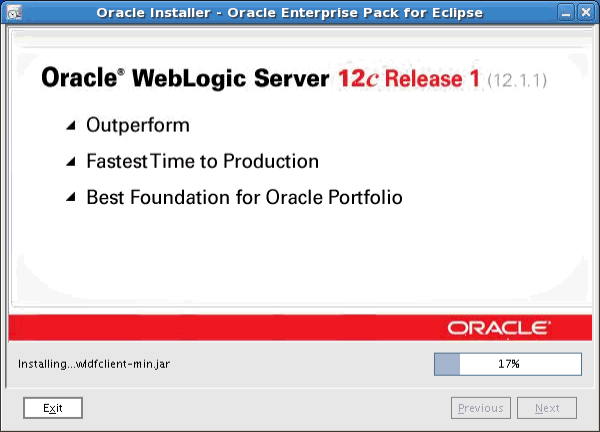

10. On the next screen, a progress bar is displayed.

Screenshot for Step

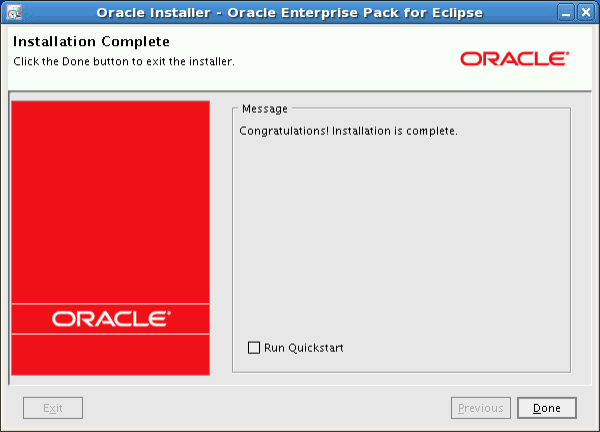

11. When the progess bar reaches 100%, the Installation Complete screen is displayed. Deselect Run Quickstart.
Then click Done.

Screenshot for Step

The installation of Oracle WebLogic Server 12c (12.1.1) is now complete.


Creating a New WebLogic Server Domain

A domain is the basic administration unit for Oracle WebLogic Server. It consists of one or more Oracle WebLogic Server instances and logically related resources and services that are managed collectively. A domain must contain one administration server. It may contain any number of managed servers. For failover, managed servers may be placed in a cluster.
To create a new WebLogic Server Domain, perform the following steps:

1. In a Terminal window, navigate to /wlserver_12.1/common/bin. In this tutorial is /u01/app/oracle/Middleware.
Then enter this command to run the configuration wizard:
$ ./config.sh

Screenshot for Step
2. On the Welcome screen of the Configuration Wizard, select Create a new WebLogic domain.
Then click Next.

Screenshot for Step

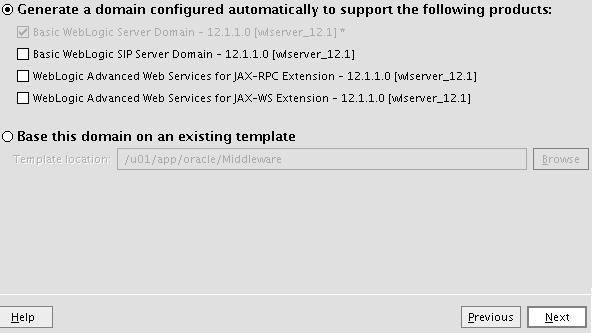

3. On the Select Domain Source screen, select Generate a domain configured automatically to support the following products.
The choice Basic WebLogic Server Domain is already selected. That is the only one required, so click Next.

Screenshot for Step

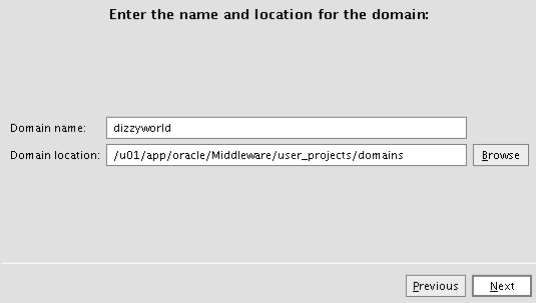

4. On the Specify Domain Name and Location screen, enter a Domain name and a Domain location.
In this tutorial the domain name entered is dizzyworld. The domain location is left at the default of /u01/app/oracle/Middleware/user_projects/domains.
Then click Next.
Note: You are free to choose a different name and location for the domain. A domain is not required to be placed under .

Screenshot for Step

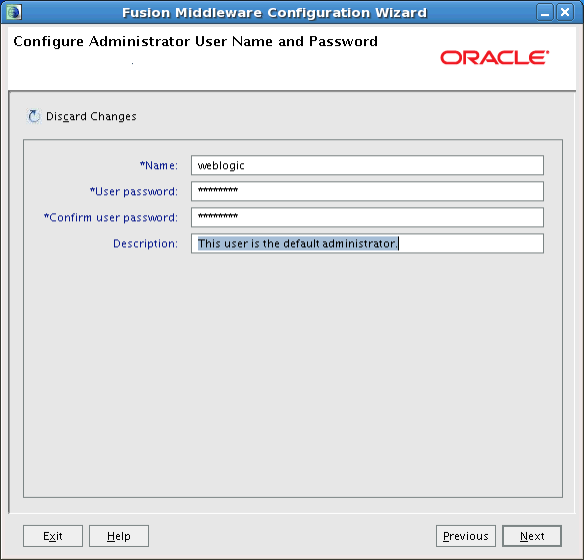

5. On the Configure Administrator User Name and Password screen, enter a Name and a password twice in the User password and Confirm user password fields. The Description is optional.
Then click Next.
In the tutorial the username is weblogic and the password is Welcome1. You can pick other values, if you wish.
IMPORTANT: Do not forget this username and password. These are required to do anything with the domain, from starting servers to changing the domain configuration.

Screenshot for Step

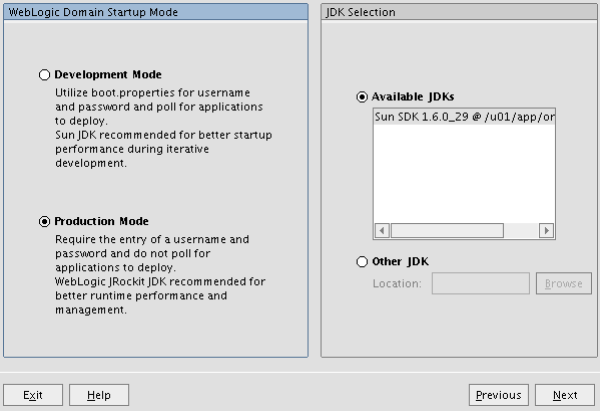

6. On the Configure Server Start Mode and JDK screen, under the WebLogic Domain Startup Mode, select the Production Mode option.
Select Available JDKs and under it select the Sun JDK. In this tutorial it is the only JDK listed and it is already selected.
Then click Next.

Screenshot for Step

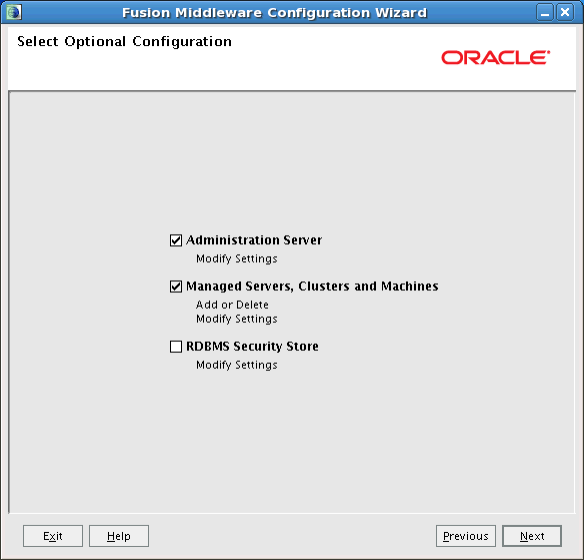

7. On the Select Optional Configuration screen, select Administration Server and Managed Servers, Clusters and Machines.
Then click Next.

Screenshot for Step

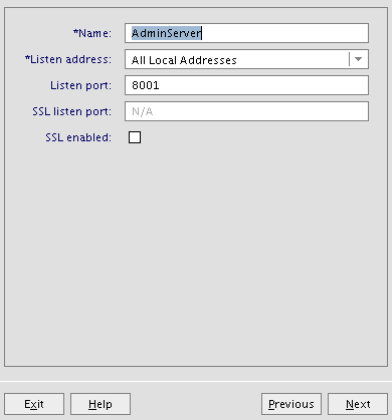

8. On the Configure the Administration Server screen, leave the default values for Name and Listen address.
In this tutorial the Listen port is changed to 8001 because another program on the machine is already using the default port of 7001.
Leave SSL enabled deselected.
Then click Next.

Screenshot for Step

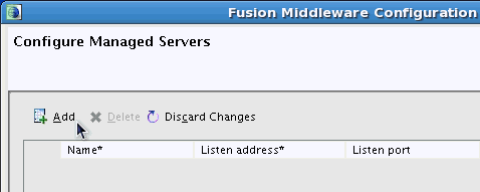

9. On the Configure Managed Servers screen, click the Add button.

Screenshot for Step

10. When a row appears in the table, enter dizzy1 for the managed server Name. Leave Listen address at the default of All Local Addresses. Change the Listen port to 8003. Leave SSL enabled deselected.

Screenshot for Step

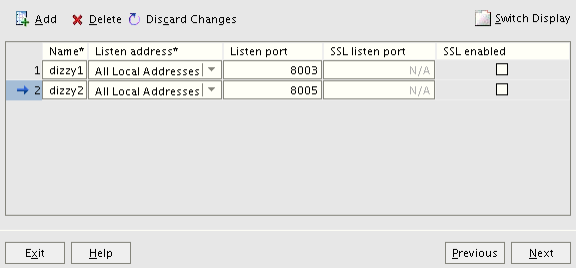

11. Click the Add button again. In the new row, enter dizzy2 for the managed server Name. Leave Listen address at the default of All Local Addresses. Change the Listen port to 8005. Leave SSL enabled deselected.
Then click Next.

Screenshot for Step

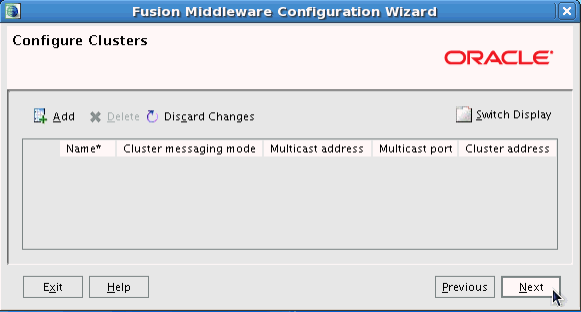

12. On the Configure Clusters screen, just click Next.

Screenshot for Step

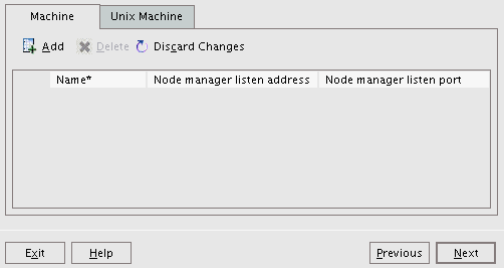

13. On the Configure Machines screen, just click Next.

Screenshot for Step

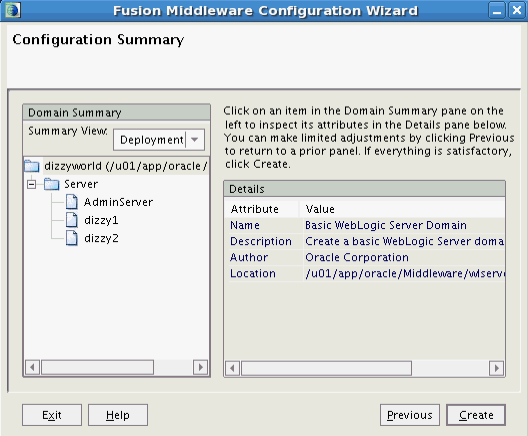

14. On the Configuration Summary screen, click Create.

Screenshot for Step

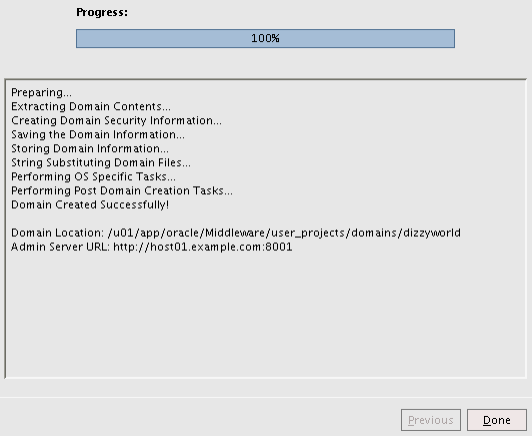

15. On the Creating Domain screen, after the progress bar reaches 100%, click Done.

Screenshot for Step
A WebLogic Server domain has now been created.

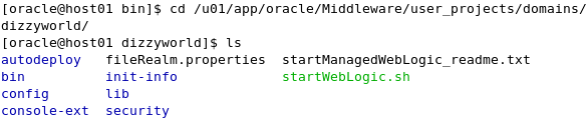

16. To view the directory structure and files for the newly created domain, enter the following commands in a Terminal window:
$ cd /u01/app/oracle/Middleware/user_projects/domains/dizzyworld
$ ls

Note: If you placed the domain in a different location, cd to that directory instead.

Screenshot for Step
17. To start the administration server of the domain, from the domain directory, enter the command:
$ ./startWebLogic.sh

Screenshot for Step

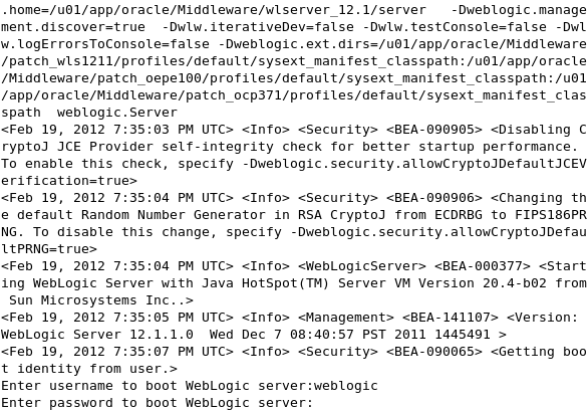

18. As the script runs it will prompt you for a username and password. Use the administrator username and password entered when the domain was created.
Note: The password will not be displayed.

Screenshot for Step
19. As the script continues to run, look for the :
The server started in RUNNING mode.

That message means the administration server is up and running.

Screenshot for Step
Note: If any warnings are displayed in the Terminal window, they can be ignored.

20. To access the WebLogic Server administration console, open a web browser and enter the URL: http://hostname:port/console

In this tutorial, that is: http://localhost:8001/console
#OUGTH: 12.1.3 เป็น 700x

Note: If you used a different port number for the administration server, use that port instead. You can also use the host name, rather than localhost. In this tutorial, the host name is: host01.example.com

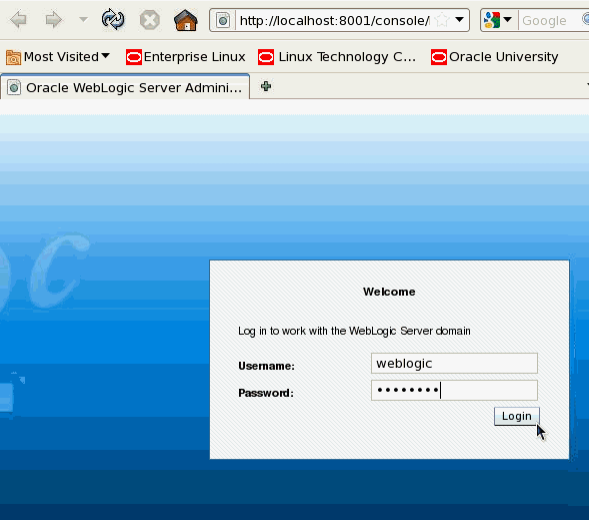

On the Welcome screen, log in using the Username and Password entered to start the administration server.

Screenshot for Step

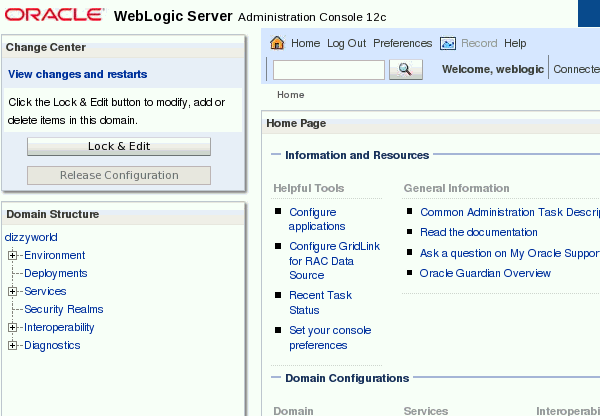

21. The home page of the administration console is displayed.

Screenshot for Step

Summary
In this tutorial, you learned how to:
  • Install Oracle WebLogic Server 12c
  • Create a new WebLogic Server domain
The next suggested tutorial is titled Oracle WebLogic Server 12c: Configuring Managed Servers.

Resources
  • For documentation on Oracle WebLogic Server 12c, visit the Documentation Library.
  • For more information on installing Oracle WebLogic Server 12c, see the Installation Guide.
  • To learn more about Oracle WebLogic Server, refer to additional OBEs in the OLL website.

Credits
  • Lead Curriculum Developer: Bill Bell
  • Original OBE Created By: TJ Palazzolo


140702.11:33:24
• รอการเรียบเรียงเป็นภาษาไทย

140702.11:45:50
• กำลังทดสอบ OBE นี้กับ WebLogic 12.1.3.

140702.14:58:28
• UI เปลี่ยนไปตั้งแต่ 12.1.2 แล้ว.

140702.19:04:49
• เพิ่มเคส error "/lib/ld-linux.so.2: bad ELF interpreter: No such file or directory"

140702.21:38:45
• ทำใน OL65 แบบ 32 bit จะง่ายกว่า

140702.21:51:37
• OL65 64 bit จะพบ error "UnsatisfiedLinkError libXtst.so.6: Wrong ELF class" เนื่องจากปัญหา JRE 32 bit ไม่ compat กับ OS 64 bit.

141114.16:24:46
• OBE นี้อิง 12.1.1, ถ้าต้องการ 12.1.3 ให้ดูที่นี่ http://goo.gl/xvkAd2
